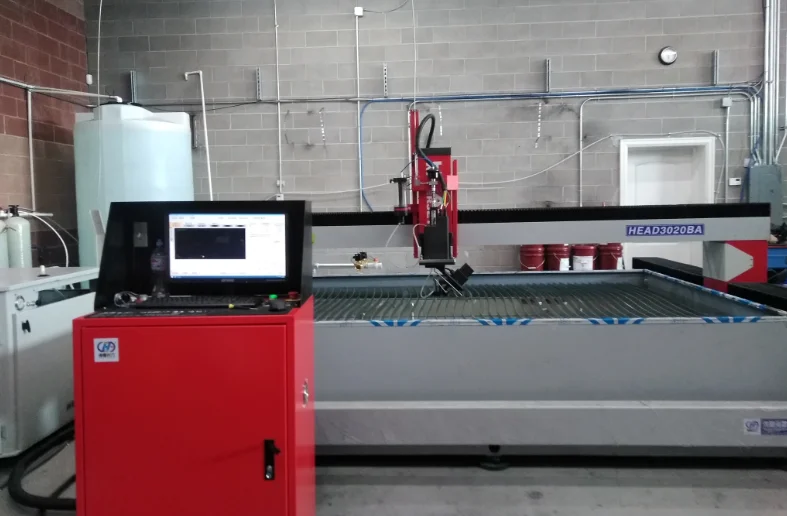

วอเตอร์เจ็ทแผ่นเซรามิกแผ่นคอนกรีตเครื่องตัดควอตซ์

  • 1 - 1 ชุด
    US$39,500.00
  • >=2 ชุด
    US$38,000.00
หมายเลขรุ่น:
HEAD3020BA
ระยะเวลาดําเนินการ::
จำนวน( ชุด) 1 - 1 >1
ระยะเวลาโดยประมาณ (วัน) 7 ต่อรองได้
การปรับตามความต้องการ:
โลโก้ที่กำหนดเอง (Min. Order: 1 ชุด)
บรรจุภัณฑ์ที่กำหนดเอง (Min. Order: 1 ชุด)

เพิ่มเติม

การปรับแต่งกราฟิก (Min. Order: 1 ชุด) น้อยกว่า
รายงานที่น่าสงสัยกิจกรรม
ภาพรวม
รายละเอียดโดยย่อ
การประกัน:
1 ปี
กำลังการผลิต:
สูง
กำลัง (W):
37KW, 50HP
ชนิด:
เครื่องตัดหิน
รับรอง:
CE SGS ISO
บริการหลังการขายให้:
สนับสนุนออนไลน์, อะไหล่ฟรี, Field ติดตั้งการว่าจ้างและการฝึกอบรม, Field การบำรุงรักษาและซ่อมบริการ, วิดีโอการวิเคราะห์สนับสนุน
สภาพ:
ใหม่
ใช้:
หินอ่อน
สถานที่กำเนิด:
Liaoning, China (Mainland)
ชื่อแบรนด์:
หัว
แรงดัน:
3 เฟส 220/380 แรงดันไฟฟ้า
ขนาด (L * W * H):
As to ชุด
น้ำหนัก:
3000-5600 กิโลกรัม
สูงสุดความดัน:
420MPa
ความดันทำงานต่อเนื่อง:
370MPa-390MPa
ตัดความแม่นยำ:
0.1 มิลลิเมตร
การควบคุมความแม่นยำ:
0.01 มิลลิเมตร
Re - ตำแหน่งความถูกต้อง:
0.02 มิลลิเมตร
Z - axis การเดินทาง:
150 มิลลิเมตร
สูงสุดตัดความหนา:
100 มิลลิเมตร
Max น้ำมัน discharge:
206L/min
Max water discharge:
3.8L/min
สูงสุดเส้นผ่าศูนย์กลางหัวฉีด:
0.35 มิลลิเมตร
ความสามารถในการจัดหา
ความสามารถในการจัดหา:
30 Set/Sets per Month waterjet tile ceramic slabs quartz cutting machines
บรรจุภัณฑ์และการจัดส่ง
รายละเอียดบรรจุภัณฑ์
วอเตอร์เจ็ทกระเบื้องเซรามิคแผ่นควอตซ์ตัดเครื่อง
1. บรรจุภัณฑ์ฟิล์มเครื่อง;
2. Collision avoidance;
3. ฟรี fumigation ไม้อัดไม้กล่องโลหะสายรัด
4. ไม้ของเรากล่องเป็นสนสน. ไม่จำเป็นต้องไม้การตรวจสอบ save transportation.
ท่า
Dalian,China waterjet tile ceramic slabs quartz cutting machines
ระยะเวลาดําเนินการ: :
จำนวน( ชุด) 1 - 1 >1
ระยะเวลาโดยประมาณ (วัน) 7 รอต่อรอง
คำอธิบายวิดีโอ
Product Description

Product description:

High precision AC five axis water cutting head, the high reliable absolute value encoder servo motor can be started without the origin switch, which saves the time of returning to the origin and reduces the mechanical failure of the whole machine. Precision 3D workpiece cutting can be achieved by using high precision and reliable speed reduction mechanism with positioning accuracy of 1.5arcmin

Features:

• 50 HP High  420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "Made in USA".
• User friendly & minimum maintenance cutting head design with USA make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (made in Japan). Which gives you trouble free operation & long life of parts.

• 5 axis cutting head enables operators to cut bevels and mitre cuts up to 45 degrees. provides the option to activate a "taper compensation" setting which offsets the taper in the water stream to accurately achieve the desired angle.

SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting heads
1-10 cutting heads (1 for standard machine)

HEAD floor type loading system

The cutting table adapts latest loading design, the max overturn angle is 85,the distance between loading material and ground is only 100 mm, max load-bearing is 1000 KG, hydraulic lifting and some other designs can meet the requirement of marble cutting. The situation many personnel are needed for loading material is changed, nowadays only 1 person is needed for the whole loading process. simple,convenient,greatly reduce the labor cost and minimize the marble breakage. This cutting table structure is 1st time adapted in domestic. It gains high praise once used by lots of marble processing clients.

Relevant technical parameters
Name
HEAD floor type loading system
Model
HEAD-F
Dimensional size
4000mm*2000mm or 3000*2000mm
Bearing weight
Max 150kg/m2

A. Press the green button to start the turning of the system, at this time, the hydraulic station is supplying the hydraulic oil to the hydraulic cylinder.
B. Press the up button, the hydraulic cylinder begin to move, and the loading system begin to turn up

C. Press the red button to stop the loading system, when it stay in a certain angle level. Then you can put your cutting material on the system.
D. After you load your material, then press the down button, the loading system will go down and back to the water tank

Detailed Images

waterjet residual abrasive removal system

not affect normal waterjet cutting work The abrasive sand removal device can also work when the water jet cutting machine is working.put the sand suction nozzle into the waterjet tank, abrasive sand removal work can be carried out. At the same time it will not affect the completion of Desanding waterjets work properly

Traditional way to remove sand

Waterjet cutting machine stop running, expensive labor costs, low efficiency, it normally takes 2-3 days to complete

Cutting sample

Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.

About our company

>>>Brief Introduction Of HEAD waterjet company

HEAD water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, military and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning China, with more than 15 years full experience and a professional sales team.HEAD water jet, so cutting is no longer a problem!

Quality and credit goes all the way. HEAD , a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

>>View of Company honor

Service & FAQ

>>>Try to Read This -------Our Service

1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

>>>Try to Read This -------FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed European CE certificate and meet Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of speed?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.

Keep safety

Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting head while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.

Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous material.In most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.


why choose HEAD water jet

1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder

Transaction Details
Packing & Delivery

Our Package Advantage:
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.


Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.

HEAD WATER JET MAKES CUTTING IS NO LONGER PROBLEM !
