สัตว์เลียเกลือบล็อกทำให้เครื่องกดไฮโดรลิคเกลืออิฐเครื่องกด

FOB อ้างอิงราคา:รับราคาล่าสุด
US$2,500.00 - US$70,000.00 / ตั้ง | 1 ตั้ง / ชุด (Min. Order)
รายงานที่น่าสงสัยกิจกรรม
ภาพรวม
รายละเอียดโดยย่อ
ชนิด:
เครื่องผลิตถ่านก้อน
สภาพ:
ใหม่
สถานที่กำเนิด:
Henan, China
ชื่อแบรนด์:
HEXIE
หมายเลขรุ่น:
XY400, XY500, XY720
แรงดัน:
220 โวลต์/380 โวลต์
กำลัง (W):
30kw
รับรอง:
CE ISO
ฟังก์ชั่น:
สัตว์ lick
Feed วัสดุ:
เกลือวิตามินฯลฯ
วัสดุเครื่อง:
เหล็กคาร์บอนที่ทนทาน/สแตนเลส
สี:
ตามคำขอของลูกค้า
การผลิตความเร็ว:
2-3 บล็อกต่อนาที
บล็อกน้ำหนัก:
2-20kgs
มอเตอร์:
Siemens ยี่ห้อ
บริการหลังการขายให้:
วิศวกรที่มีให้บริการในต่างประเทศเครื่องจักร
การประกัน:
1 ปี
ความสามารถในการจัดหา
ความสามารถในการจัดหา:
30 Set/Sets per Month
บรรจุภัณฑ์และการจัดส่ง
รายละเอียดบรรจุภัณฑ์
20'OT
40'OT
ท่า
Any main port of China
ระยะเวลาดําเนินการ: :
20-40 working days
Product Description

Product Introduction

We produce low-power, high pressure hydraulic automatic cattle&sheep licking salt block press machine
with high pressure and high accuracy. This press machine uses advanced mechanical, electrical, hydraulic and pneumatic control, with automatic feeding device, floating pressure, so that the density of molded products has been effectively controlled, hydraulic system uses advanced cartridge valve blocks, hydraulic machine to ensure continuous and frequent stability working; Mechanical stopper positioning and stepless adjustment mechanism of Loading, molding, demolding three-position to determine the stability, adjustable of the product’s geometry size. With oil fluid cooling device. PLC and man-machine interface centralized control, while equipped with a mechanical limit device to ensure product consistency.

Item
Unit
XY100
XY200
XY315
XY400
XY500
XY720
Nominal pressure rating
kN
1000
2000
3150
4000
5000
7200
Max liquid working pressure
Mpa
25
25
25
25
25
25
Max distance from sliding block flat to workbench
mm
1100
1100
1150
1200
1200
1200
Motor total power
kw
7.5
15
22
30
30
45
Block weight
kg
2
2-5
4-7
2-10
5-10
10-20

Main Component


①Mainframe

Composed of main hydrauliccylinder, material pushing hydraulic cylinder, bottom plate hydraulic cylinder,matching mould frame and mould, pressure head and so on.



②Hydraulic pressure station

Composed of motor, hydraulic pump, pump protection device,control valve, pipe system that used to connect block machine



③Control box

Composed of electrical system and PLC control system.

Main Features

1.Adopt the most advanced professional cartridge valve blocks, large flow path, save system pressure loss. Good seal performance, under long-term heavy load work condition the system also won't appear insufficient phenomenon; equipped with Preliminary unloading device, eliminate the hydraulic impact.
2.Use two-way floating pressure adding system, ensure the uniform density of blocks, make sure the high density of blocks; The block hole part adopt core pulling cylinder, make the hole edge smoothly and good looking.
3.Hydraulic cylinder are made of thick-wall seamless high strength alloy . In wall was honing by raw sandpaper and fine sandpaper by honing machine, ensure the cylinder in wall reach mirror surface, then make sure the good using performance.
4.Adopt PLC automatic control system, strong anti-interference ability and low failure rat.
Miniature relay adopt Japanese omron electric equipment, ensure the safety of control system.
5.Adopt professional mould frame, use Six guide pin to ensure accurate positioning, and equip mechanical position limitation, not only ensure the perfect outlook of pressed material also ensure the high quality.
6.Adopt advanced fast device, small calorific value, high productivity, durable and energy saving ( around 3.5 times per minutes)

Licking Salt Block-----Health food of cattle/sheep

Licking salt block machine, scientific formula of minerals, vitamins and other trace elements, nutrients that cattle, sheep ect.required, through licking salt block briquetting machine processed into blocks, pie and other special shapes, one kind of feed for cattle and sheep lick , shape varies, some cylindrical, some rectangular, square ect. Also known as massive compound additives, generally referred to as "lick block" or "lick brick." Theory and practice show that: feeding licking salt blocks can significantly improve the health of cattle and sheep, to accelerate growth and improve economic efficiency. Since the 1980s, licking salt briquetting machine has been widely used in more than 60 countries and regions, farmers are affectionately referred to as "chocolate of cattle and sheep", known as "health products” in animal husbandry.

Licking salt block based entirely on ruminant love licking habits to design and production, and add the minerals, vitamins and other trace elements that daily needs of ruminants, capable of adding dietary deficiencies of various trace elementsrearing that artificial feeding cattle, sheep and other economic animals,thus preventing ruminant pica, mastitis in dairy cows, hoof disease, retention of afterbirth, goatspostpartum less milk , lambs frail and slow growth phenomenon. With the development of aquaculture, licking salt block has become the necessary high-performance additives in the most intensive farms, enjoy "health food" of cattle and sheep in the world.

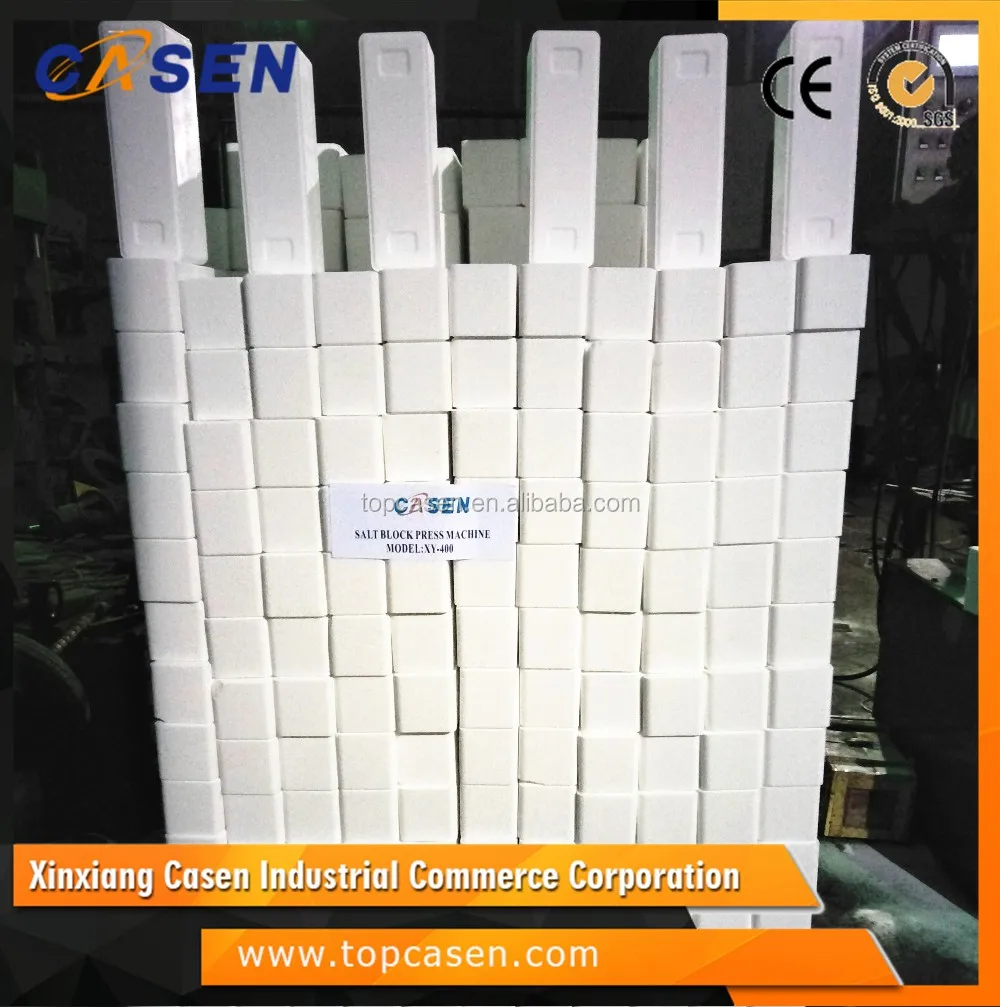

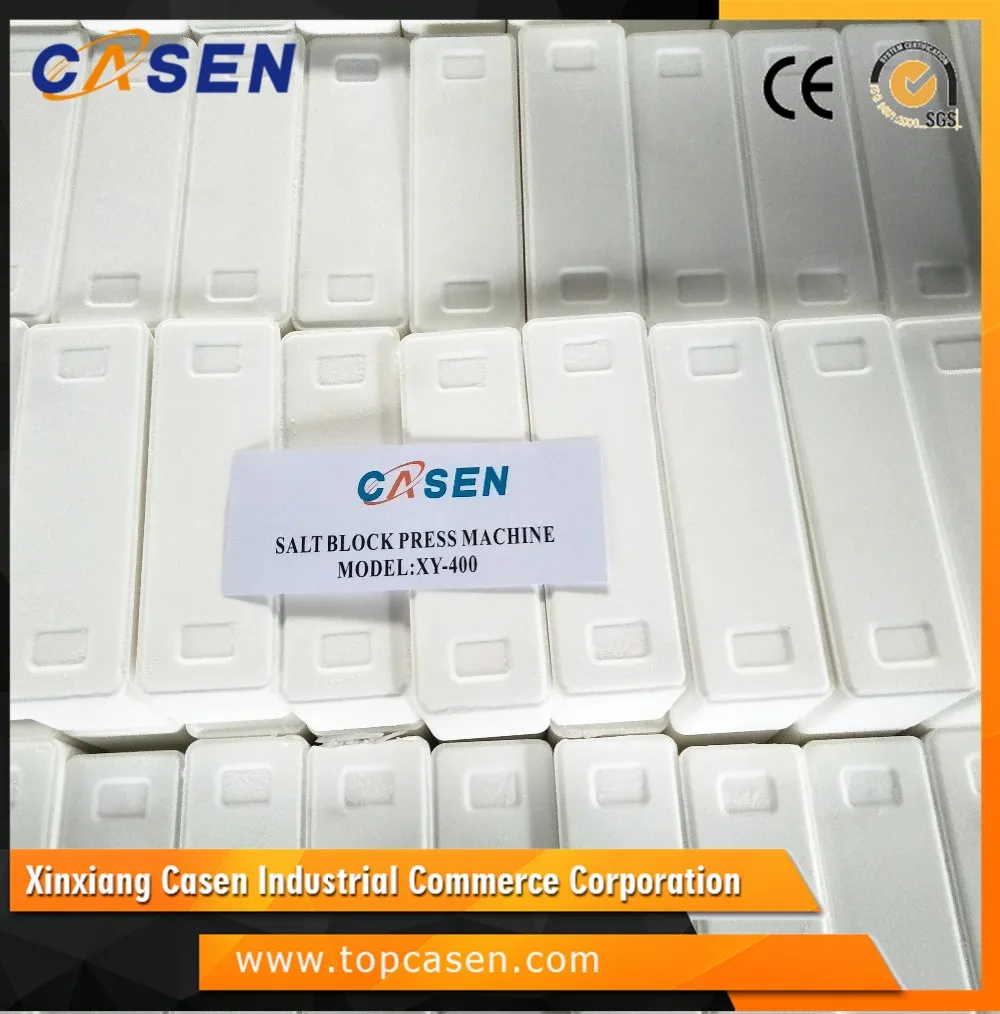

These are regular mold salt blocks made by our machines, we are also able to make as per customer's special mold!

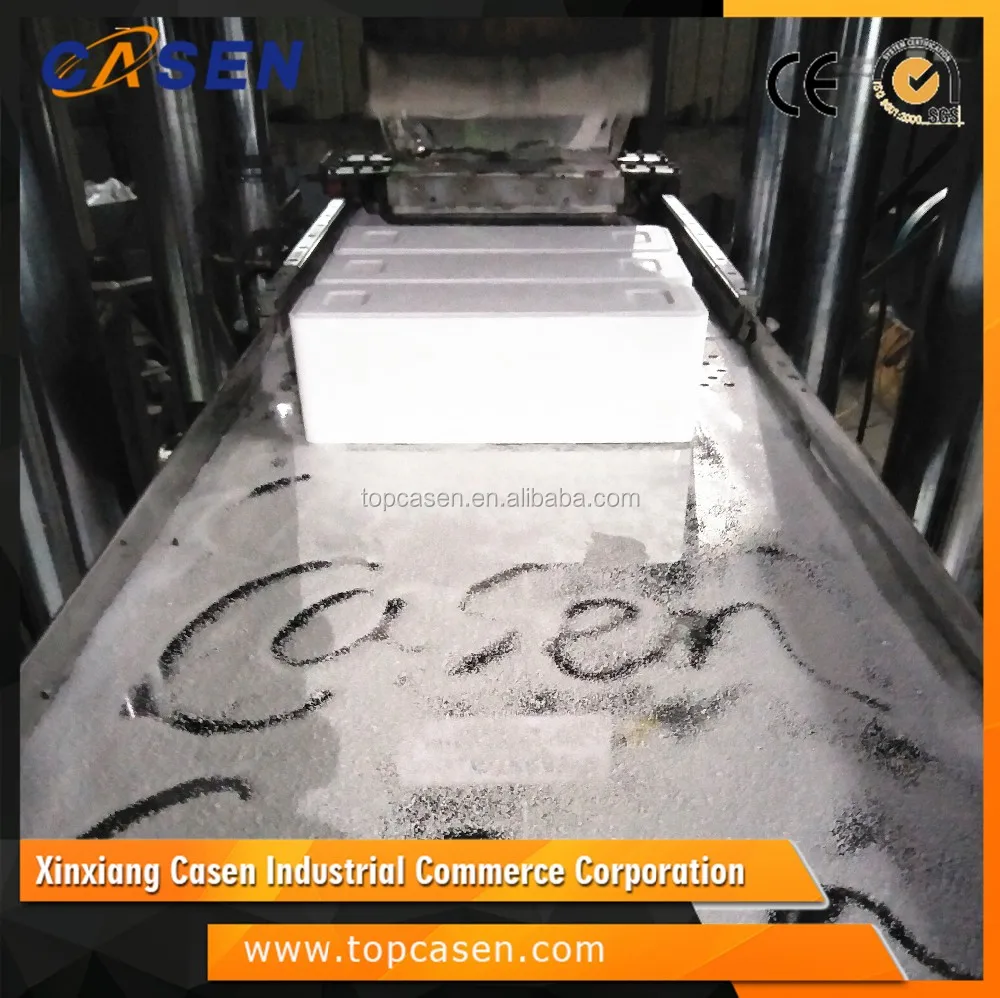

The salt block made by our machine, clean, strong and uniform size & weight.

Our Factory
Detailed Images

Long working time

Our oil tank equipped with a high efficiency condenser(cooler), which can keep the machine working normally for 10-12 hours continuously.

Mold

Generally, the mold material we use is mold steel after quenched processing, which can make the mold durable, and will not be rusted.

The best material we use for mold is 316 SS.

Salt Block Hardest

The blocks made by our machine are firmest and hardest.  You are welcome to send inquiry to Alice for more videos about our machines.

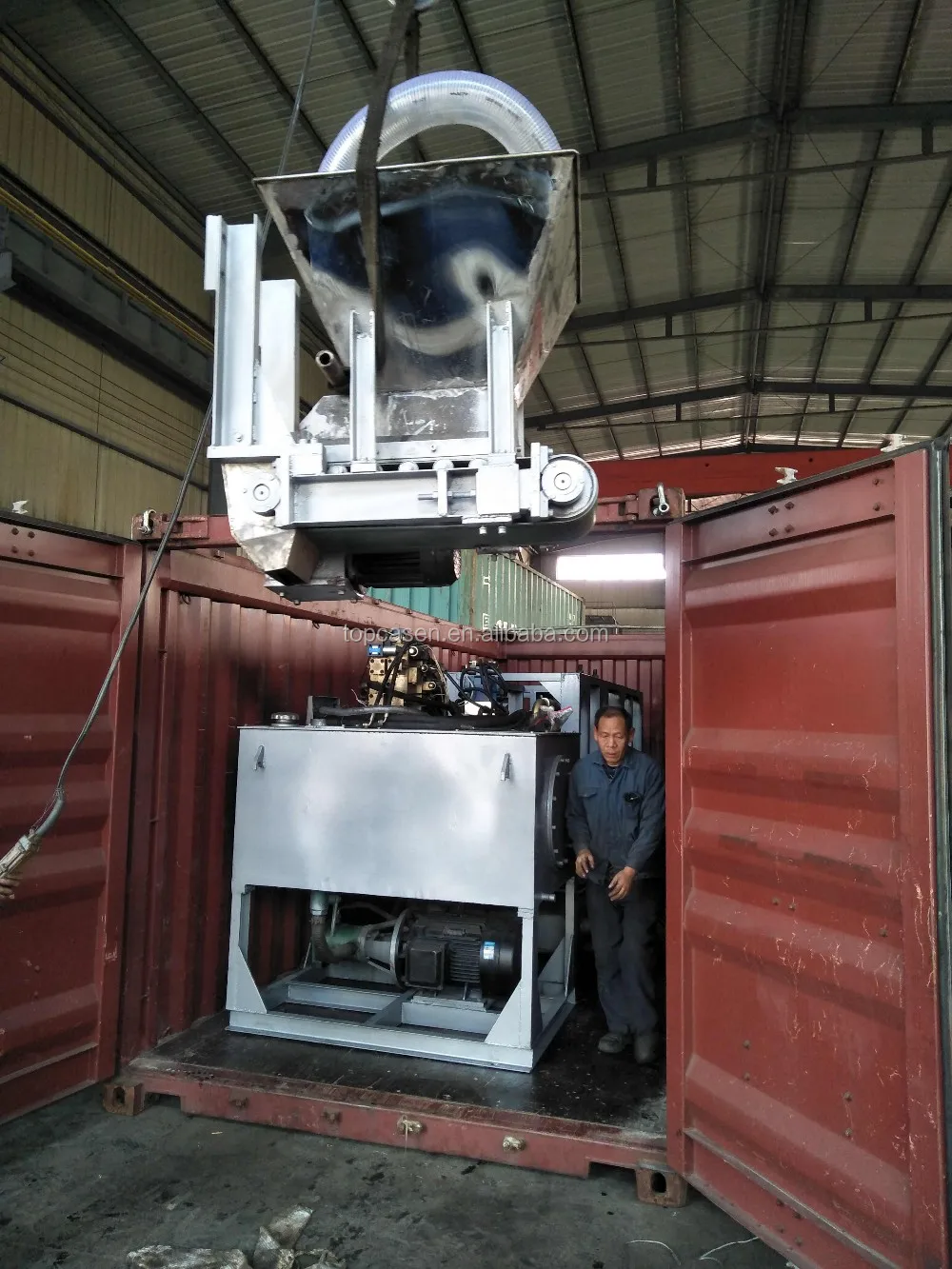

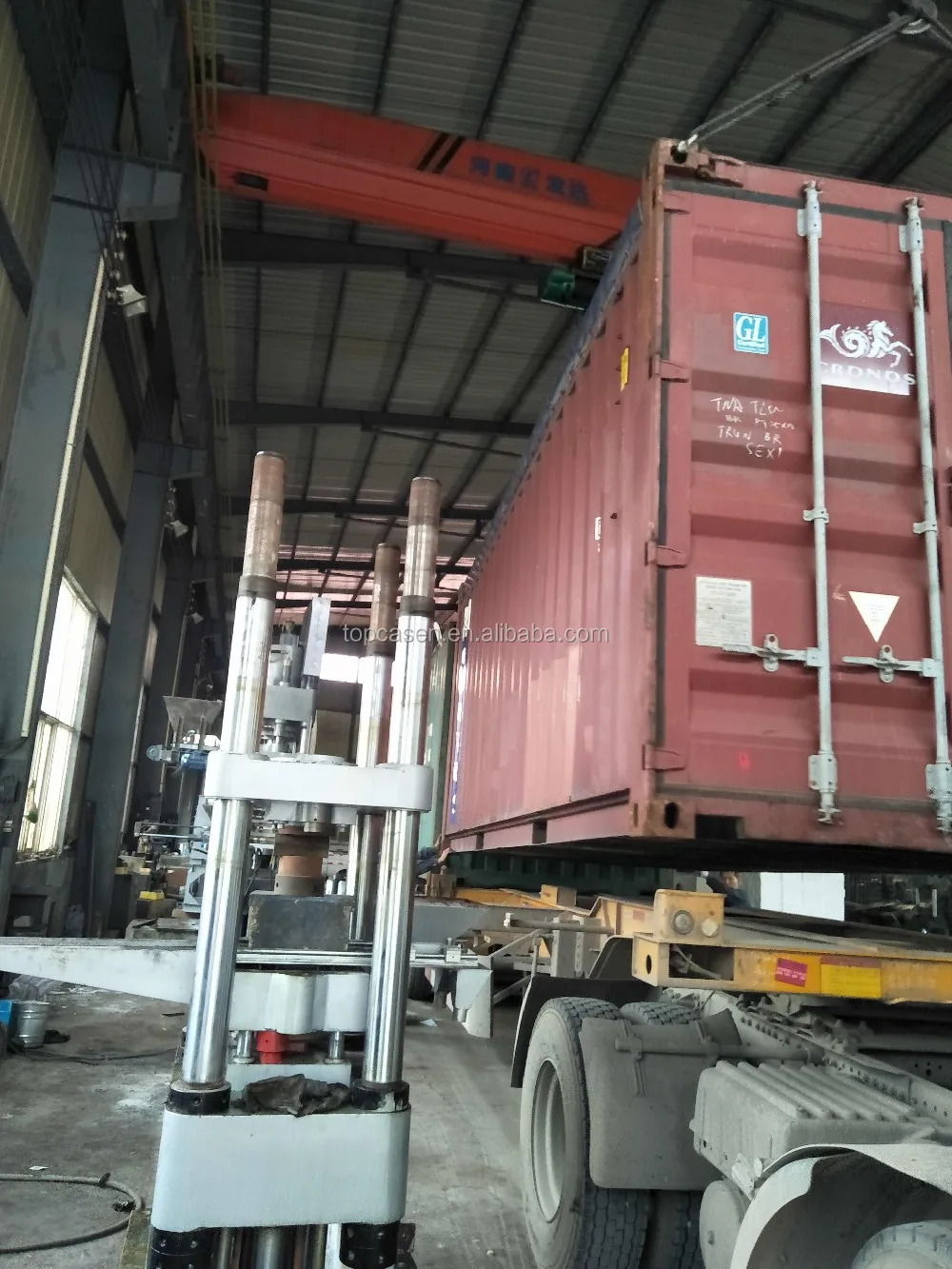

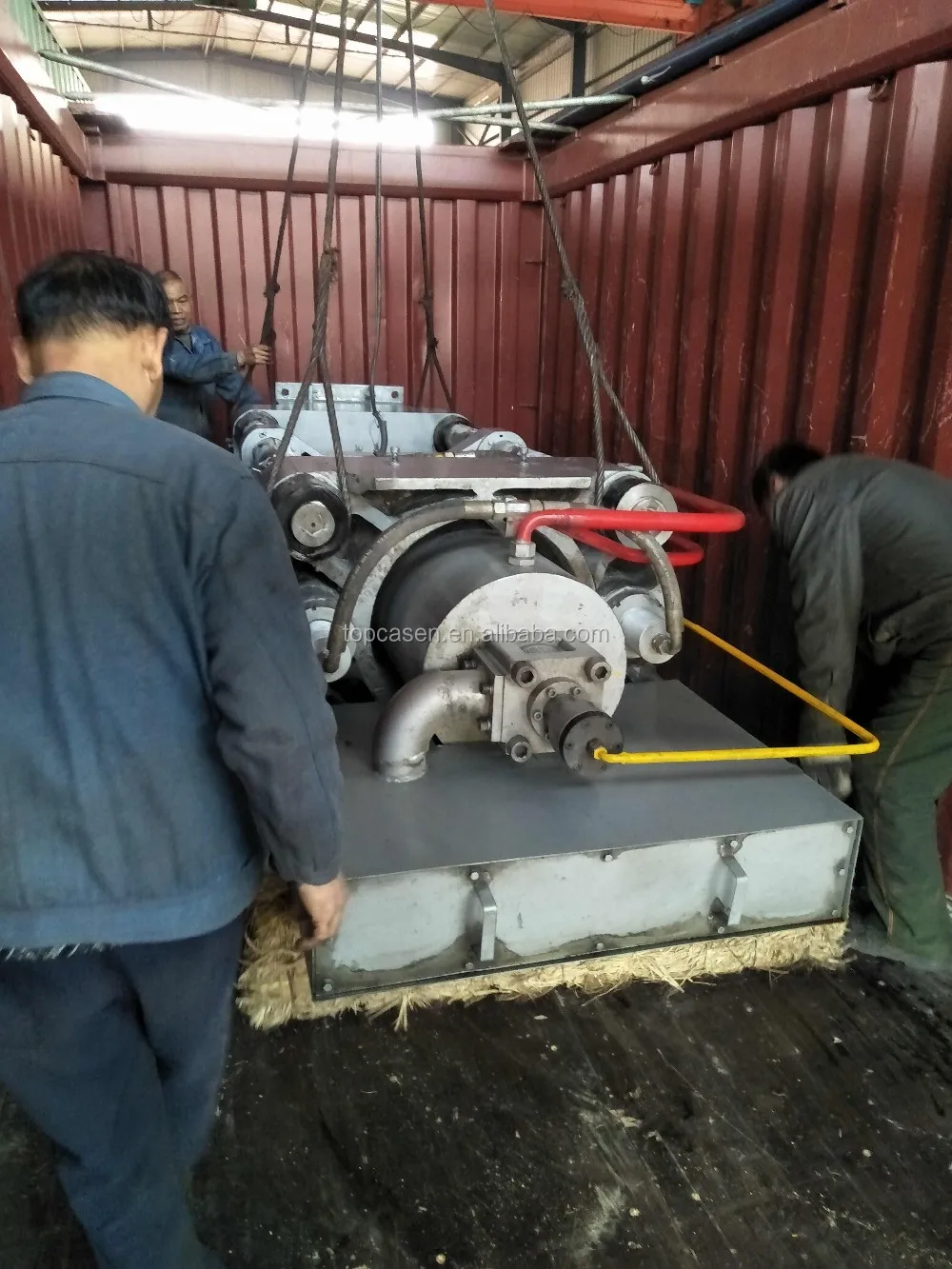

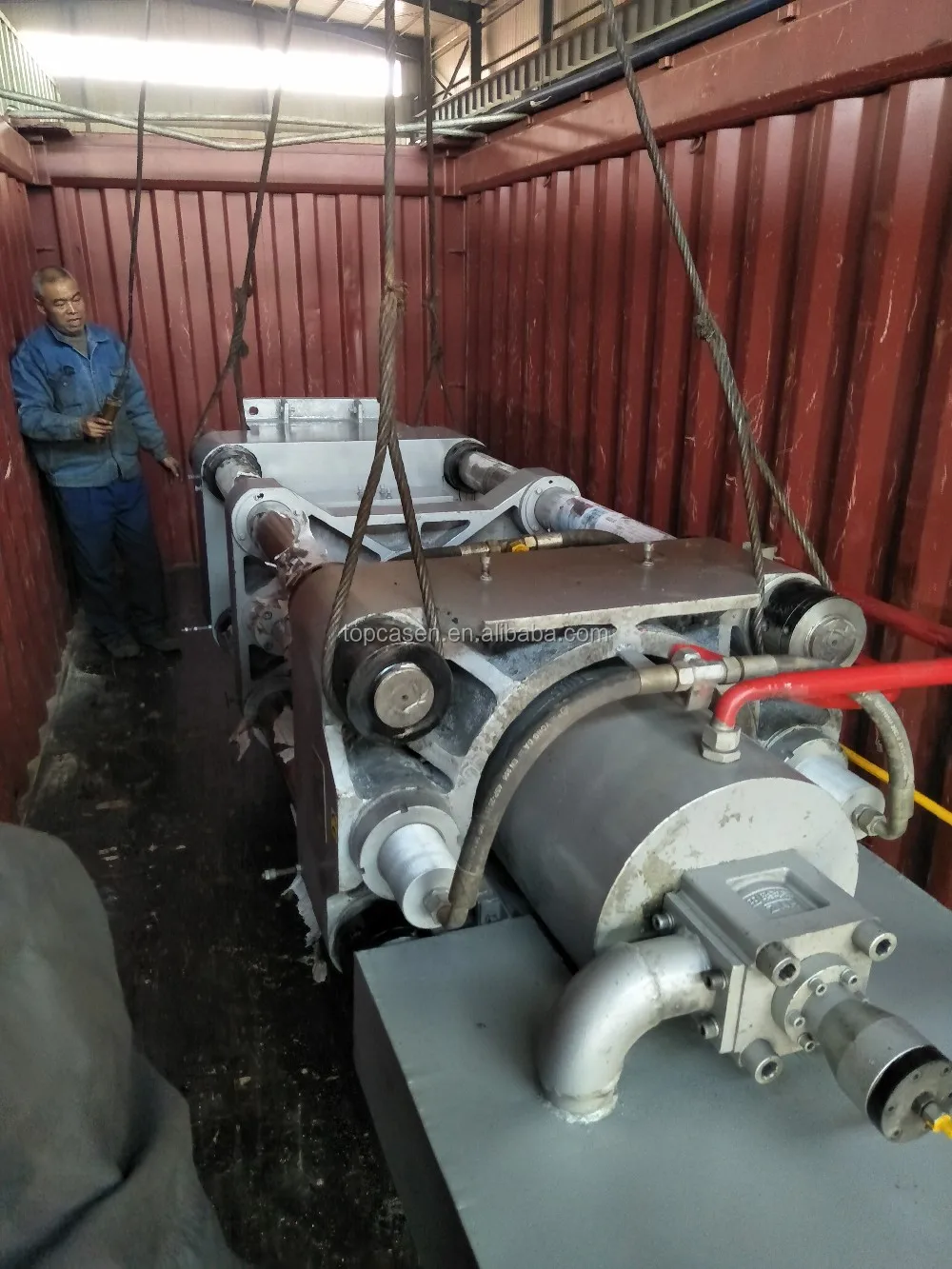

Packing & Delivery
Our Service

Abroad Installation Service

* We have a professional technical team which can help you on installation and debug the machines on abroad.

* Engineers available to service machinery overseas.

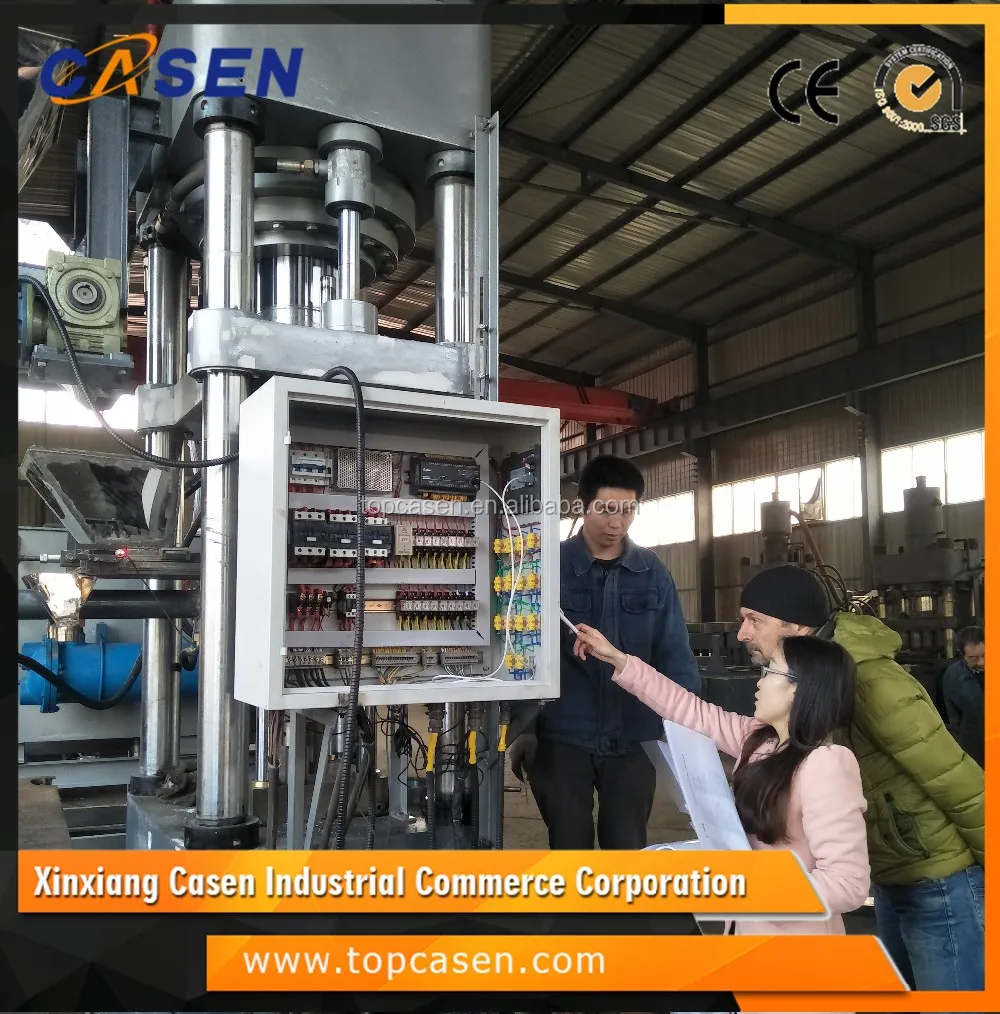

Factory Visiting

* Friendly sales team welcome you to our factory any time.

* Testing machine personally
